Seasonic FOCUS GX-750 ATX 3.0 750W Gold PSU (SSR-750FX3)

Seasonic FOCUS GX-750 ATX 3.0 750W Gold PSU (SSR-750FX3)

$347.95 AUD
$386.95 AUD $347.95 AUD
Sale Sold out
FEATURE SUMMARY
  • ATX 3.0 and PCIe 5.0 Cable (12VHPWR)
  • 80 PLUS® Gold certified
  • Compact Size - 140 mm deep

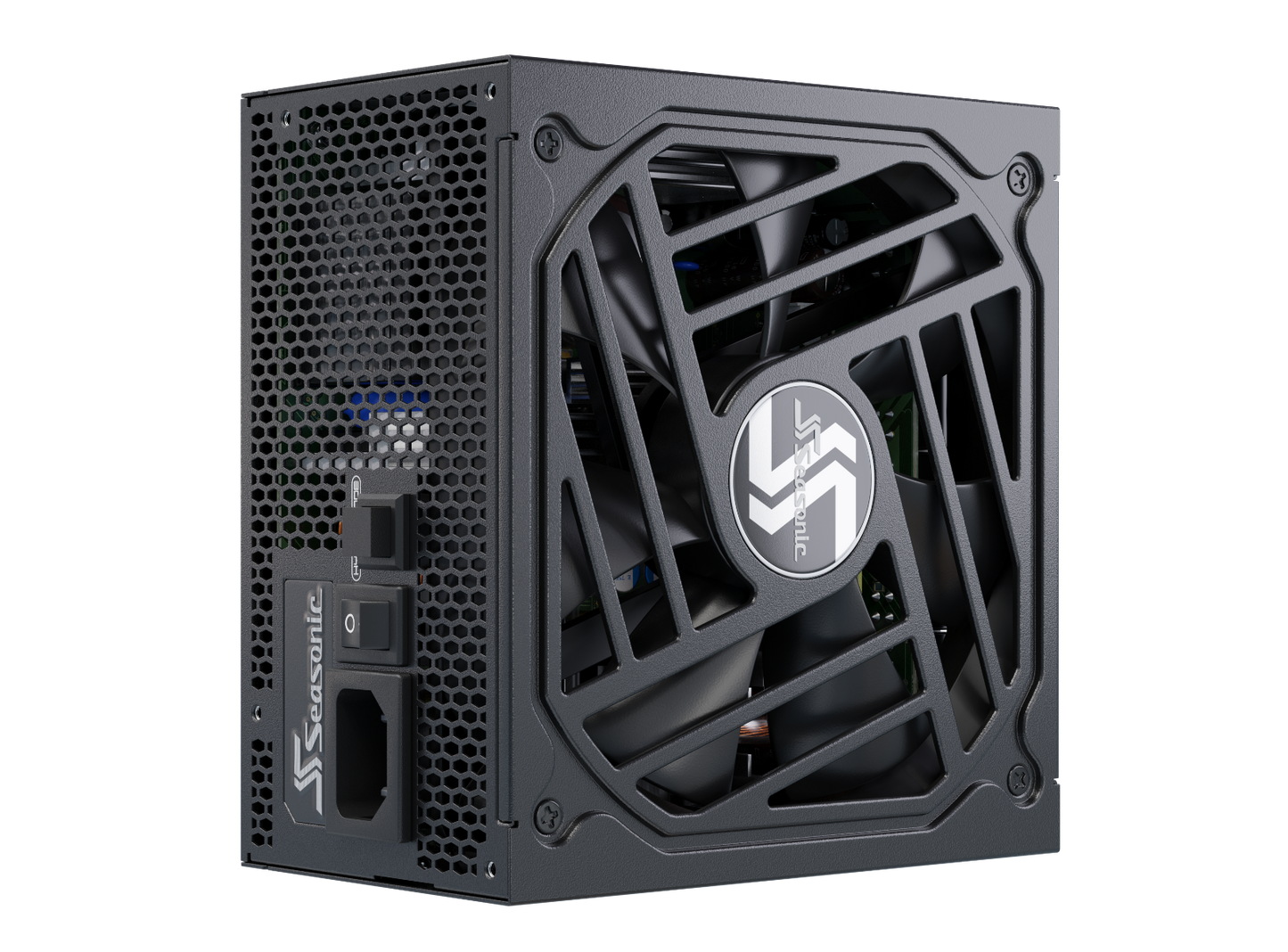

  • Top-Quality 135 mm FDB Fan
  • Digital Hybrid Fan Control
  • S3FC - Fanless until 30% load

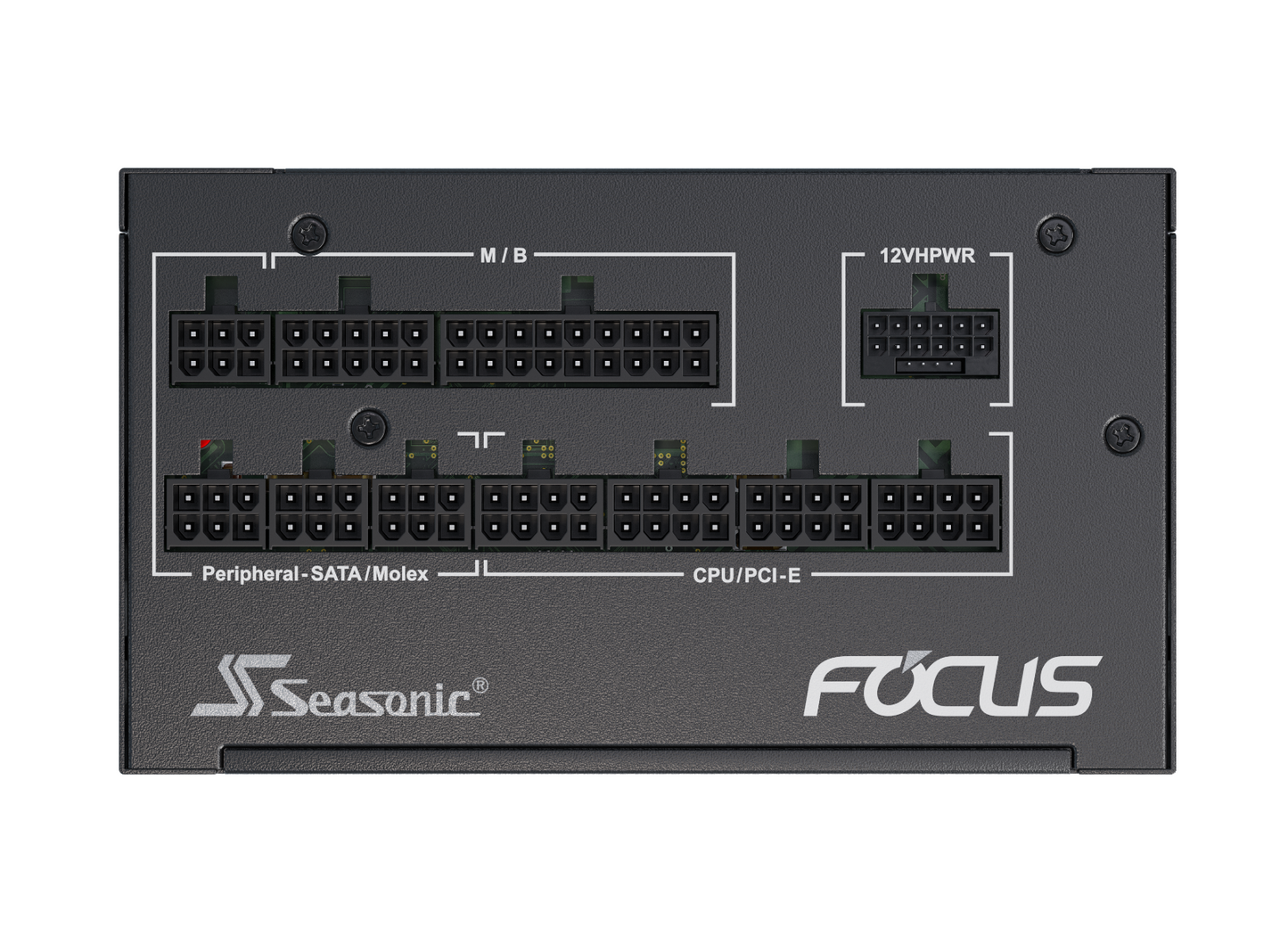

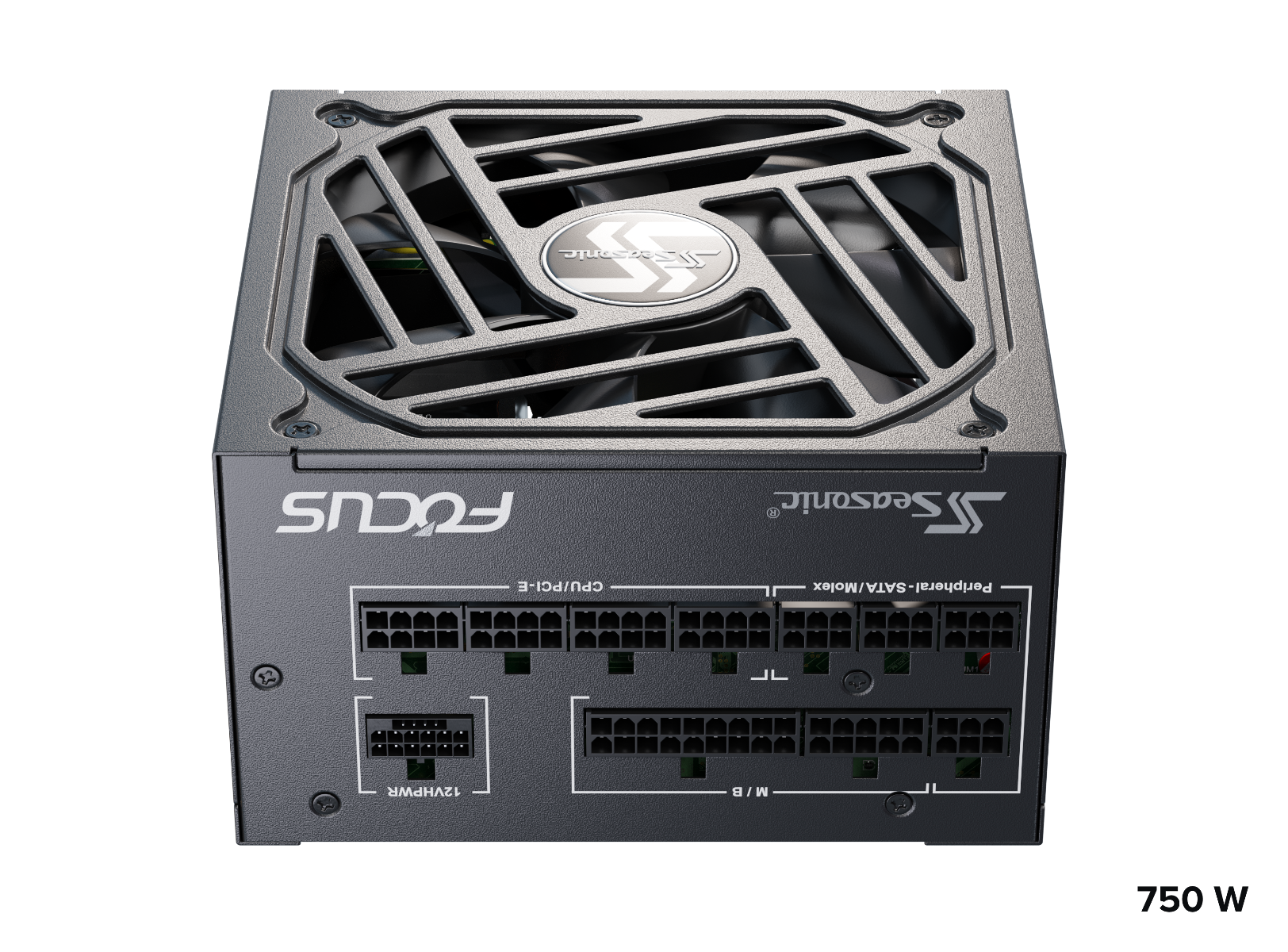

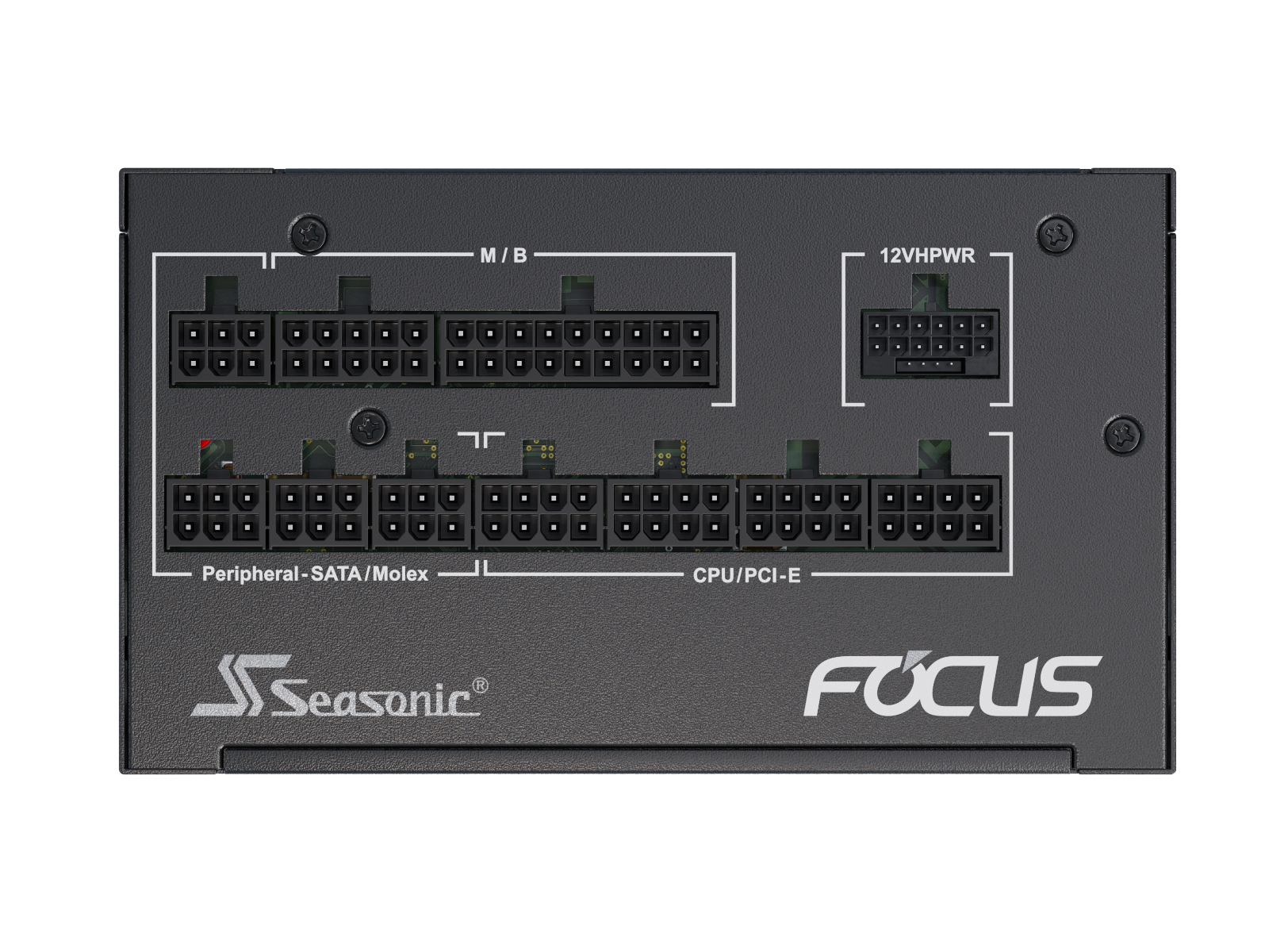

  • Cable-free Connection Design
  • Tight Voltage Regulation
  • Gold plated connectors
  • 10 years warranty


    • Technical Specifications
    80PLUS® Gold
    Cybenetics Efficiency Level TBA
    Cybenetics Noise Level TBA
    Form Factor Intel ATX 12V
    Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
    Fan Information Fan Size 135 mm
    Fan Control S3FC - Fanless until 30% load
    Fan Bearing Fluid Dynamic Bearing
    Life Expectancy 50,000 hours at 40°C, 15% - 65% RH
    Cable Information Modularity Fully Modular
    Cable type Individual Black Cables with Braided Pattern
    Electrical Features Operating Temperature 0 - 50°C
    MTBF @ 25 °C, excl. fan 100,000 hours
    AC Input Full Range
    Protection OPP, OVP, UVP, OCP, OTP, SCP
    Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
    Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
    Warranty 10 Years

    V28-PSUSEAFOCUSGX750A3
    Power Output
    AC Input
    Voltage: 100 V - 240 V
    Current: 10 - 5 A
    Frequency: 50 Hz - 60 Hz
    DC Output
    Rail
    +3.3 V
    +5 V
    +12 V
    -12 V
    +5 VSB
    Maximum Power
    20 A
    20 A
    62 A
    0.3 A
    3 A
    100 W
    744 W
    3.6 W
    15 W
    Total Continuous Power
    750 W
