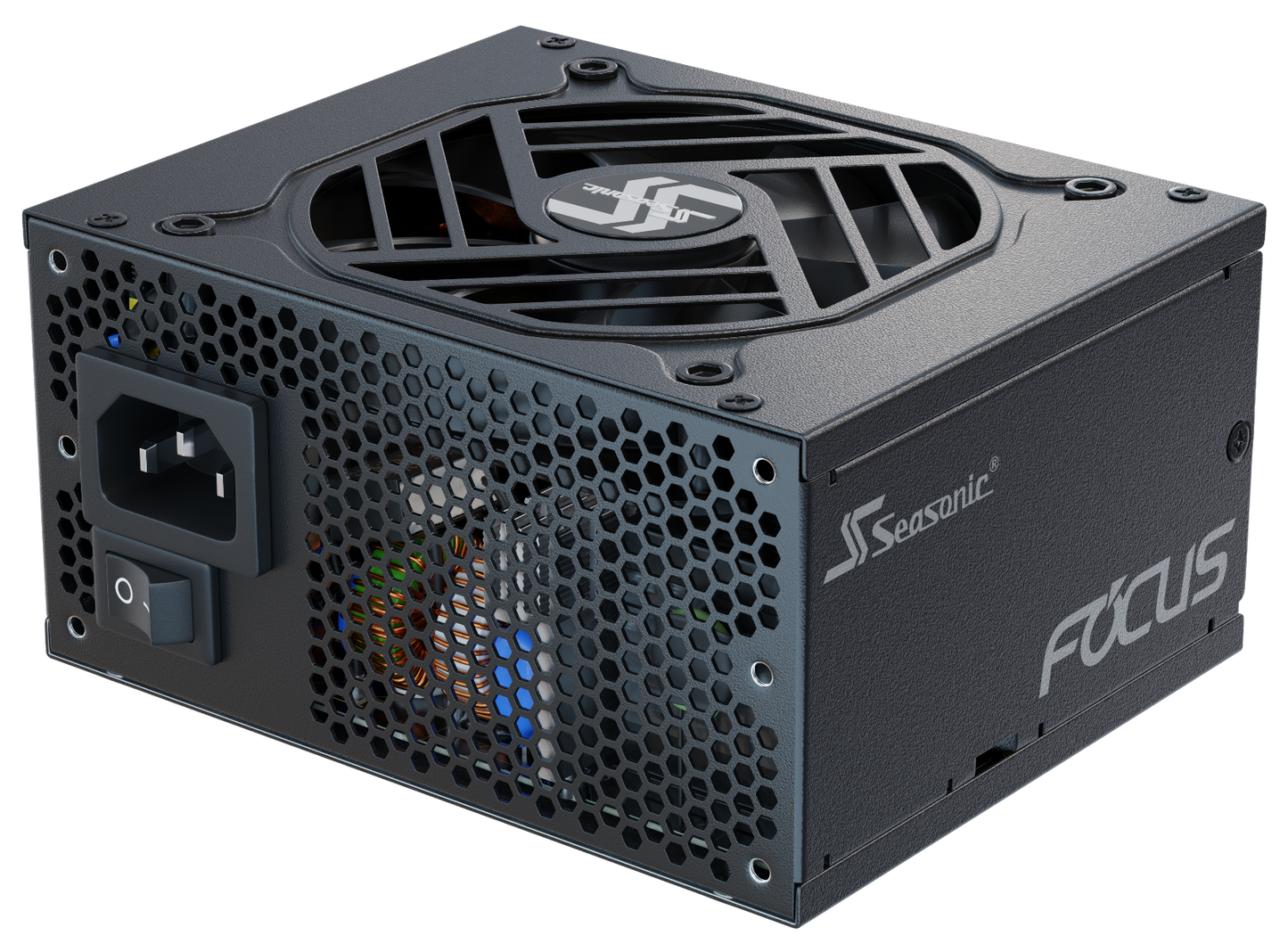

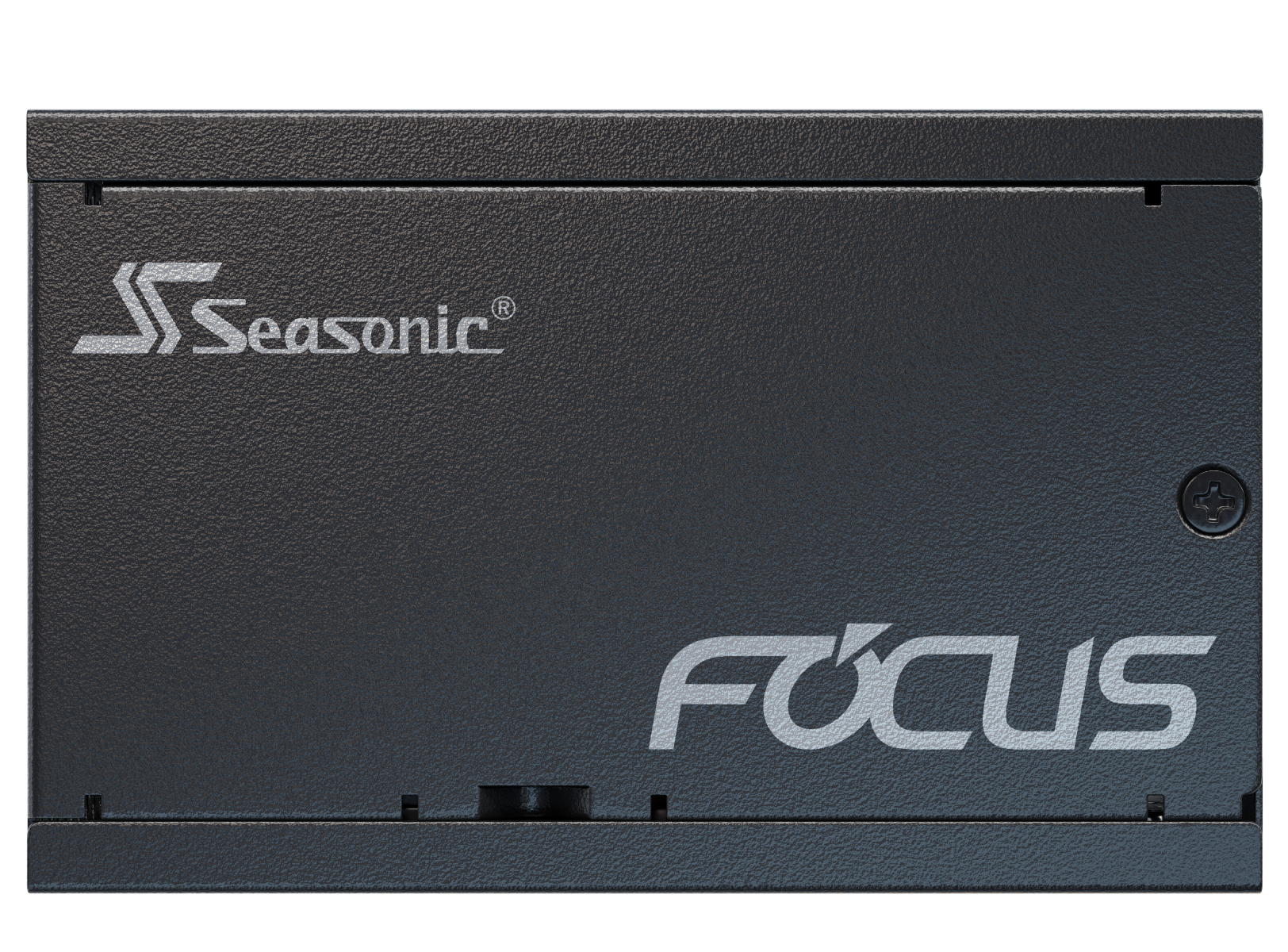

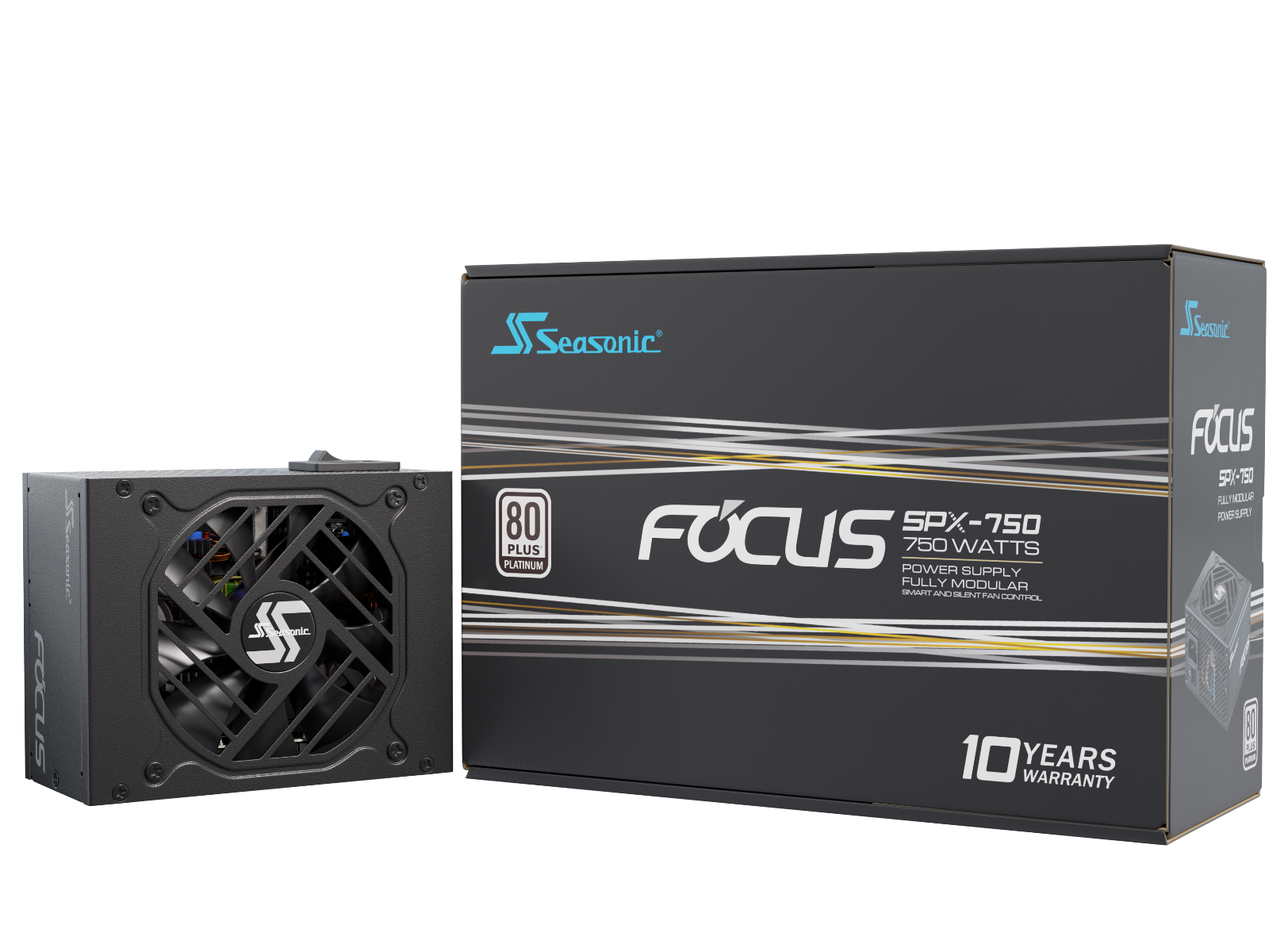

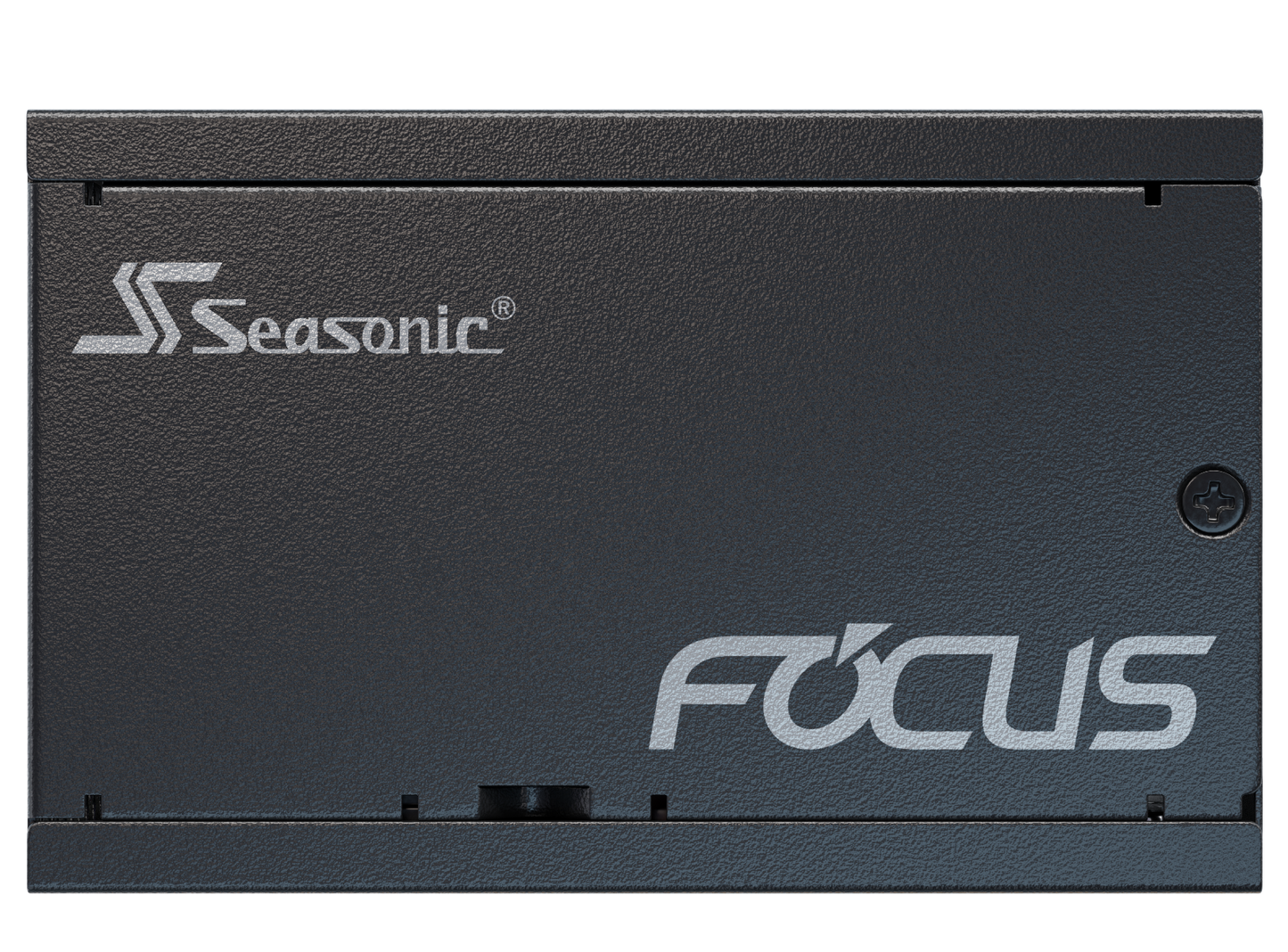

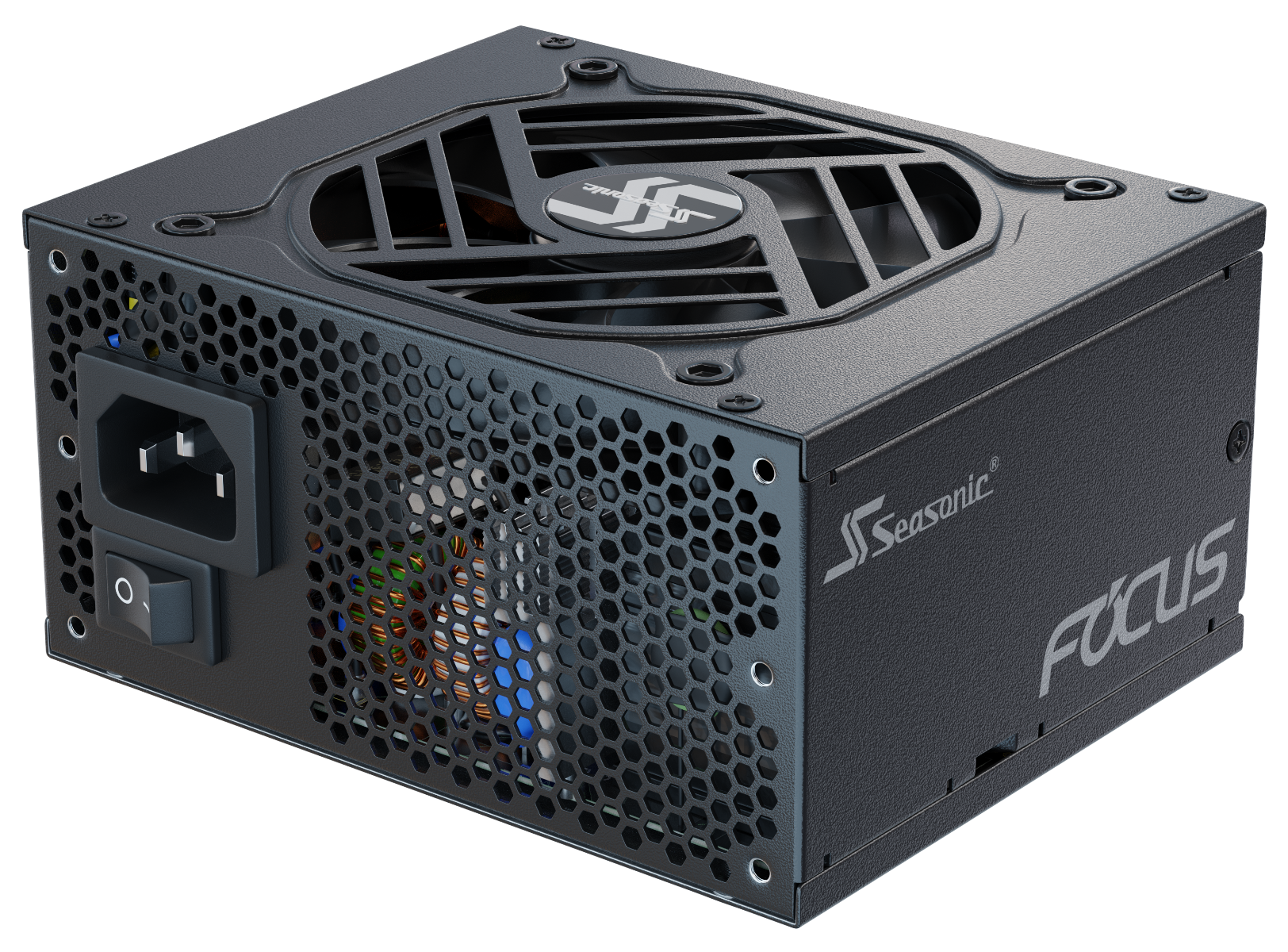

Seasonic FOCUS SPX-750 750W Fully Modular PSU
Seasonic FOCUS SPX-750 750W Fully Modular PSU
Regular price
$444.95 AUD
Regular price
$513.95 AUD
Sale price
$444.95 AUD
Unit price
per
Couldn't load pickup availability
FEATURE SUMMARY80 PLUS® Platinum certified Compact SFX Size - 125 (L) x 100 (W) x 63.5 (H) mm Tight Voltage Regulation Cable-free Connection Design S3FC - Fanless until 30 % load SFX to ATX Expandability Gold plated connectors
| Technical Specifications | ||
| 80PLUS® | Platinum | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | Intel SFX 12 V / ATX 12 V | |
| Dimensions | 100 mm (L) x 125 mm (W) x 63.5 mm (H) | |
| Fan Information | Fan Size | 92 mm |
| Fan Control | Premium Hybrid Fan Control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |

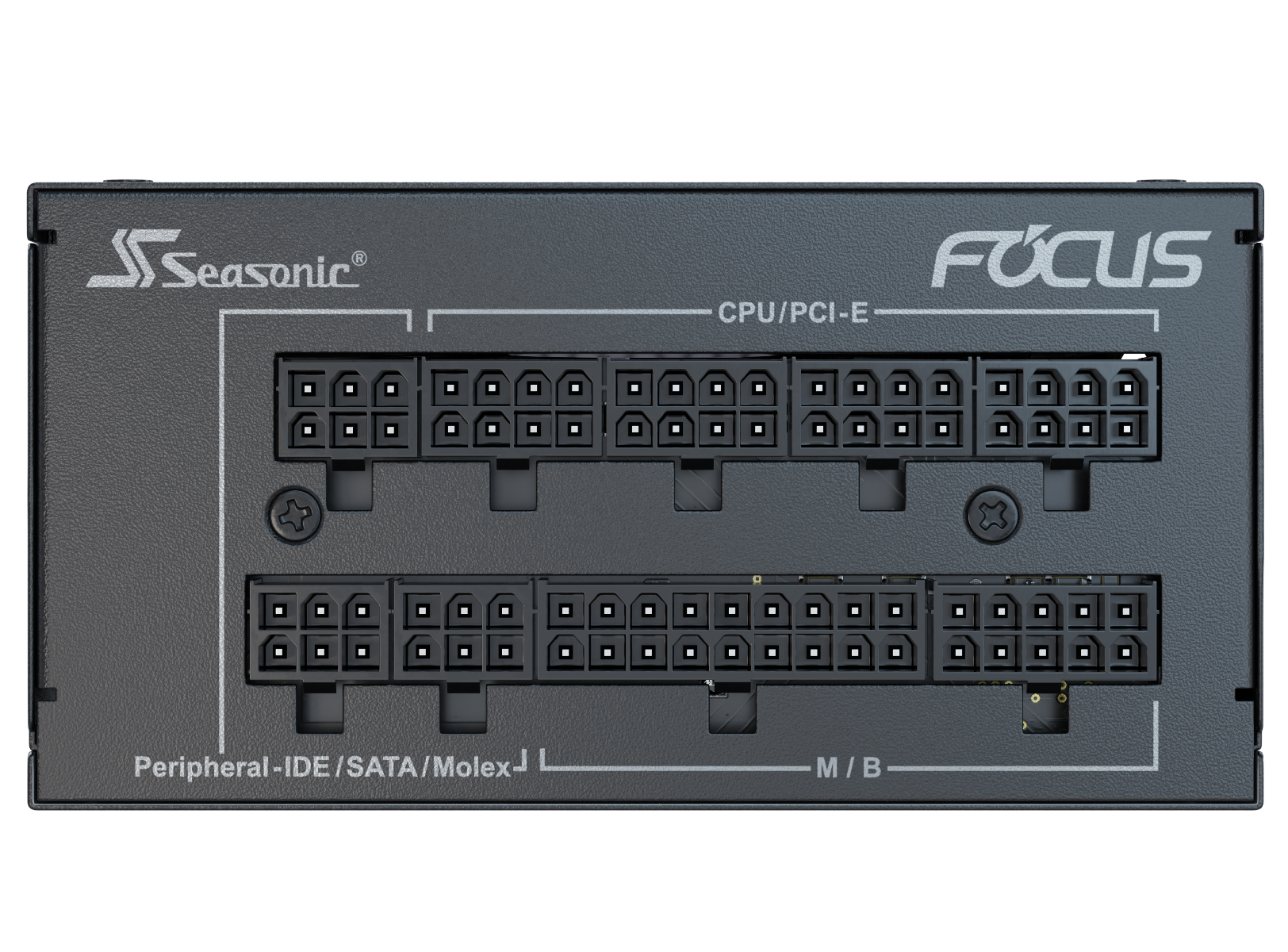

| Cable Information | Modularity | Fully Modular |
| Cable type | Flat black cables | |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 10 Years | |
Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 10 - 5 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 62 A | 0.3 A | 3 A | |
| 100 W | 744 W | 3.6 W | 15 W | |||
| Total Continuous Power | 750 W | |||||
