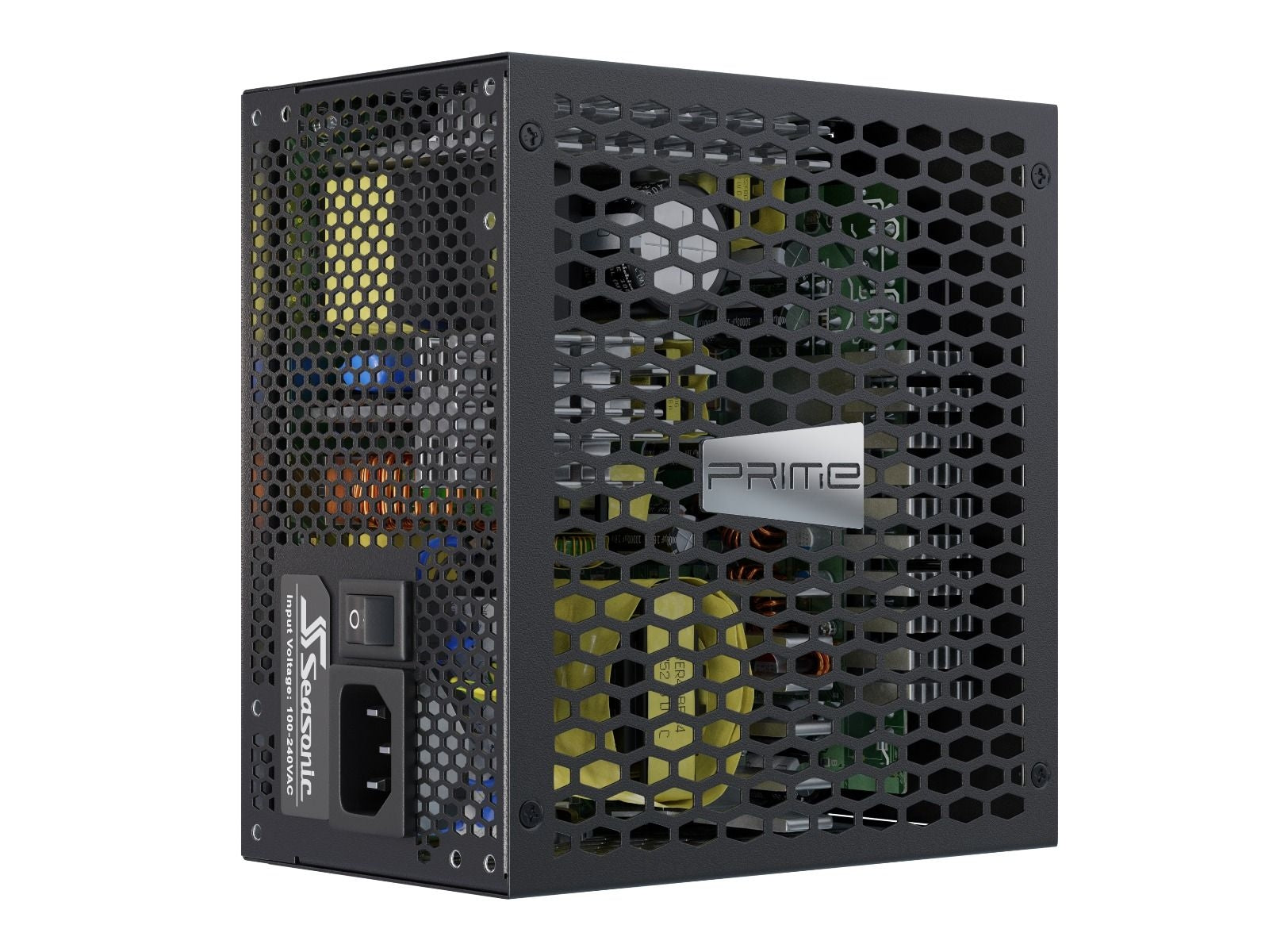

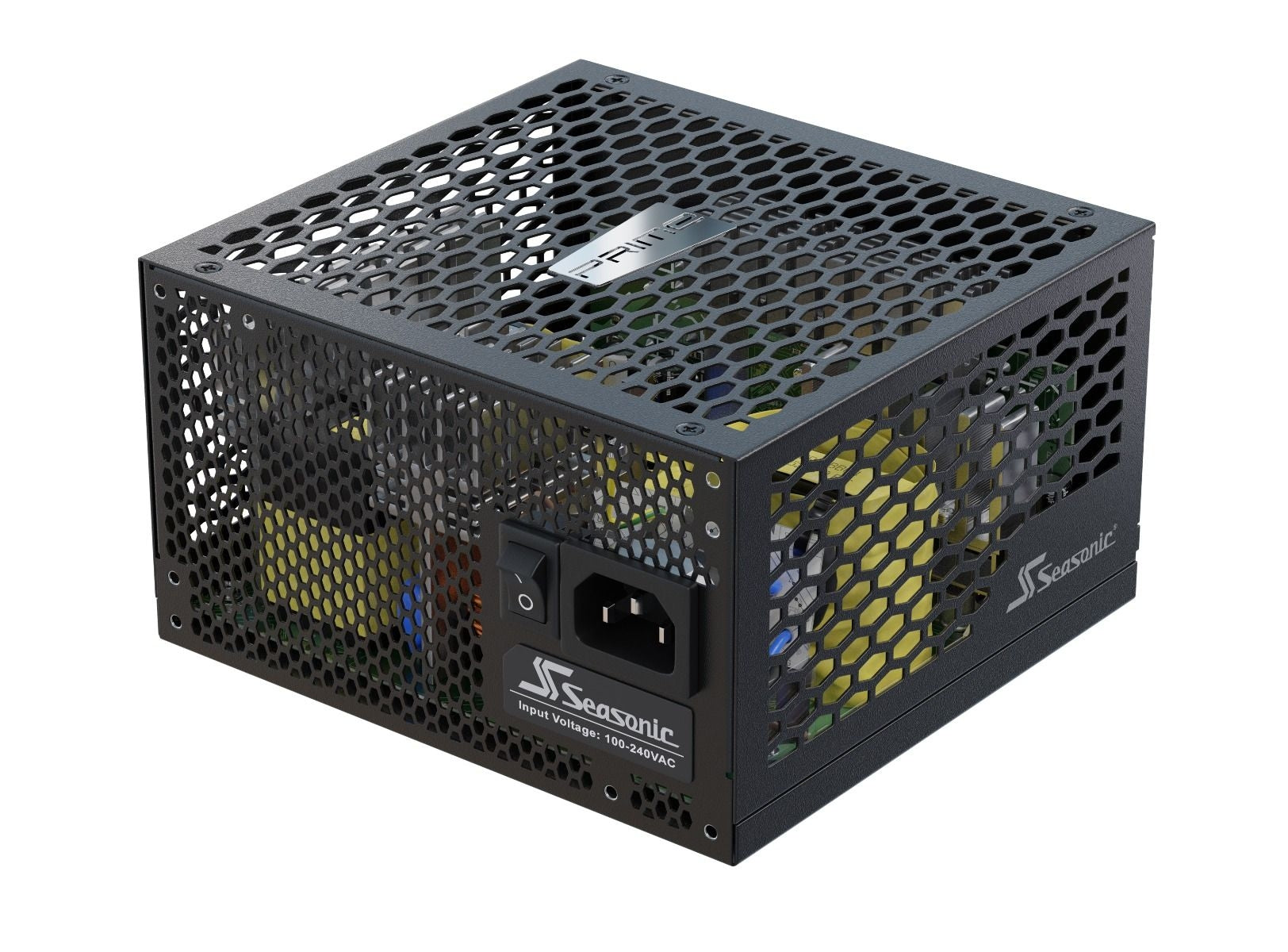

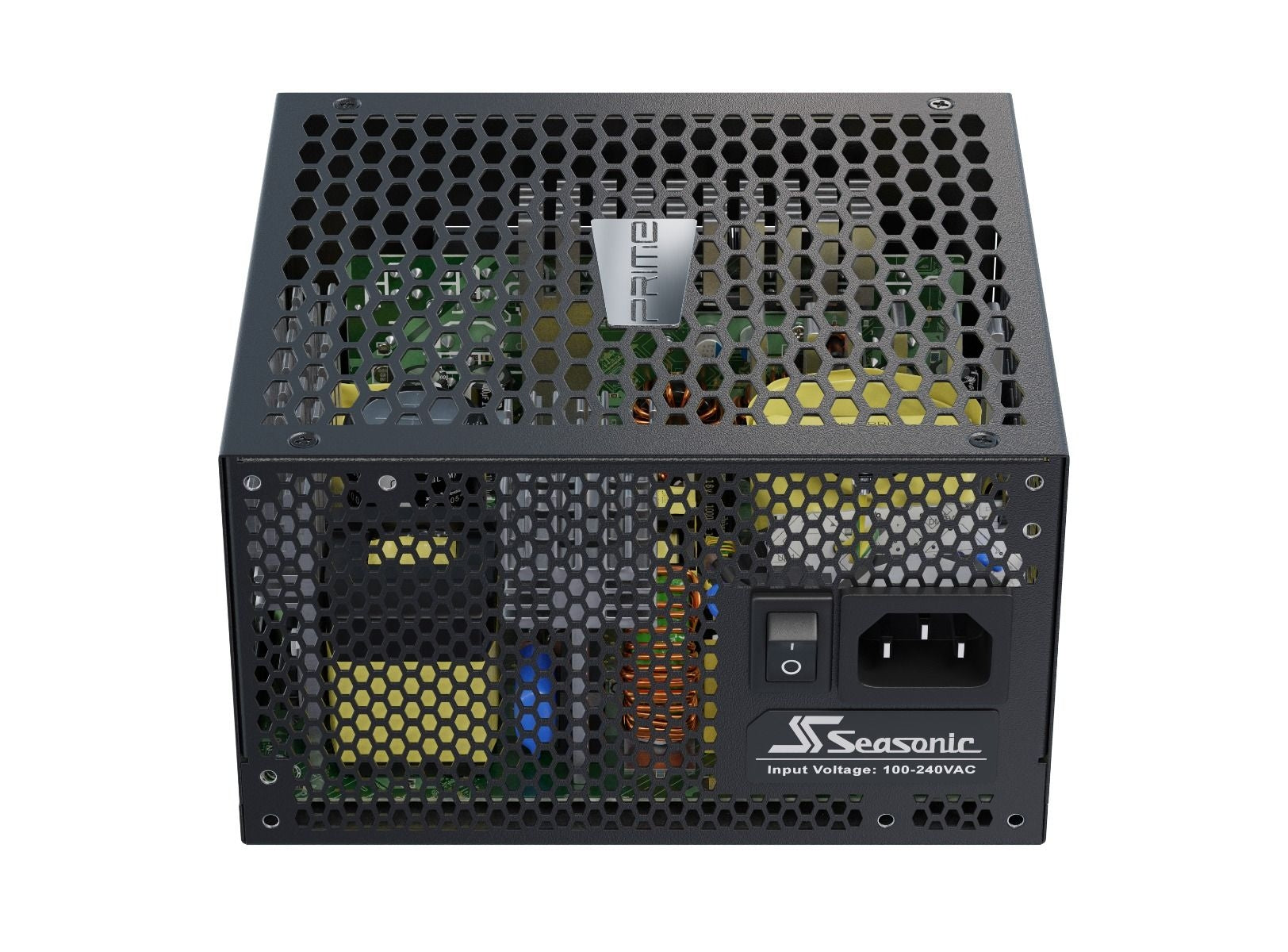

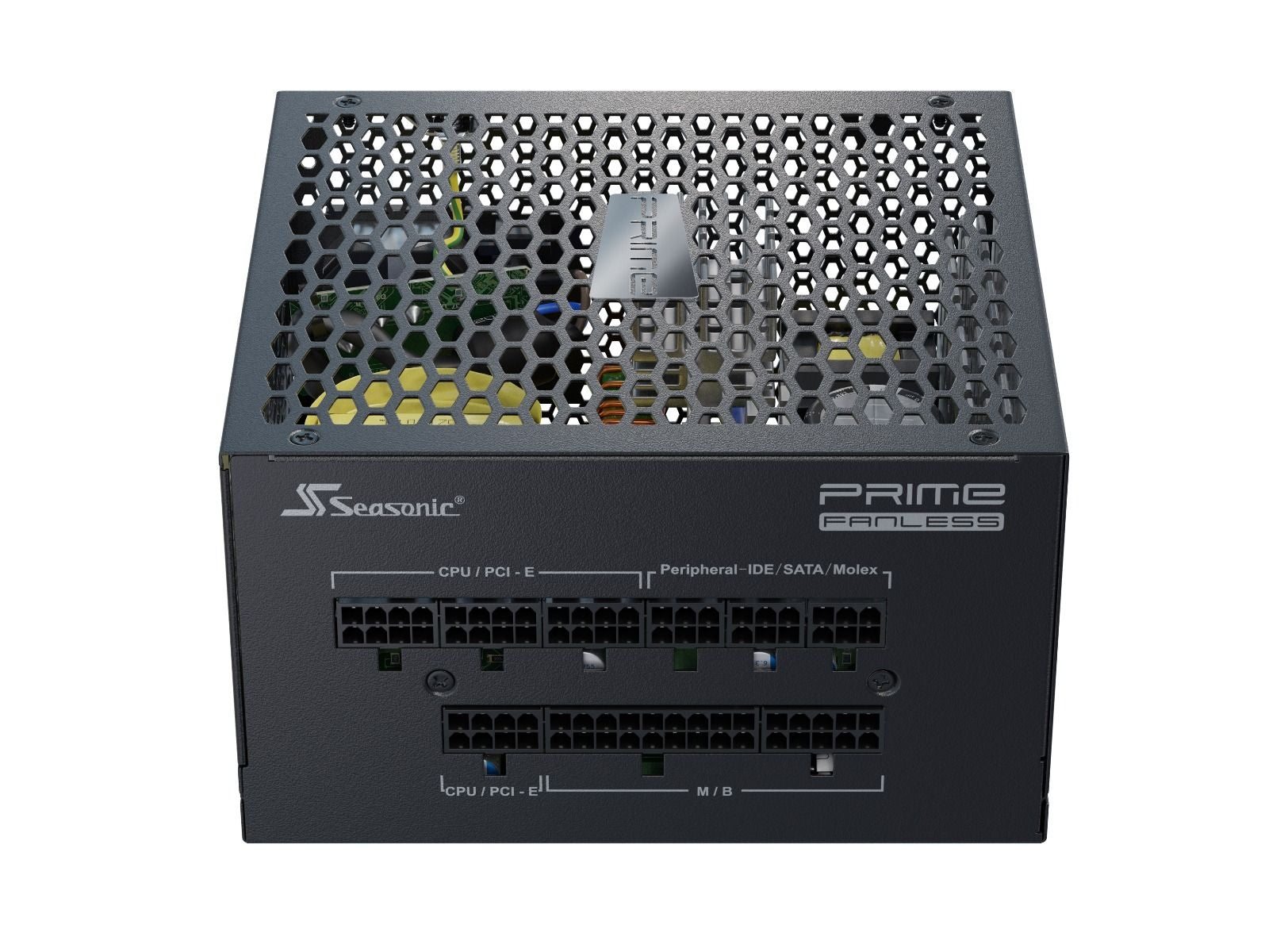

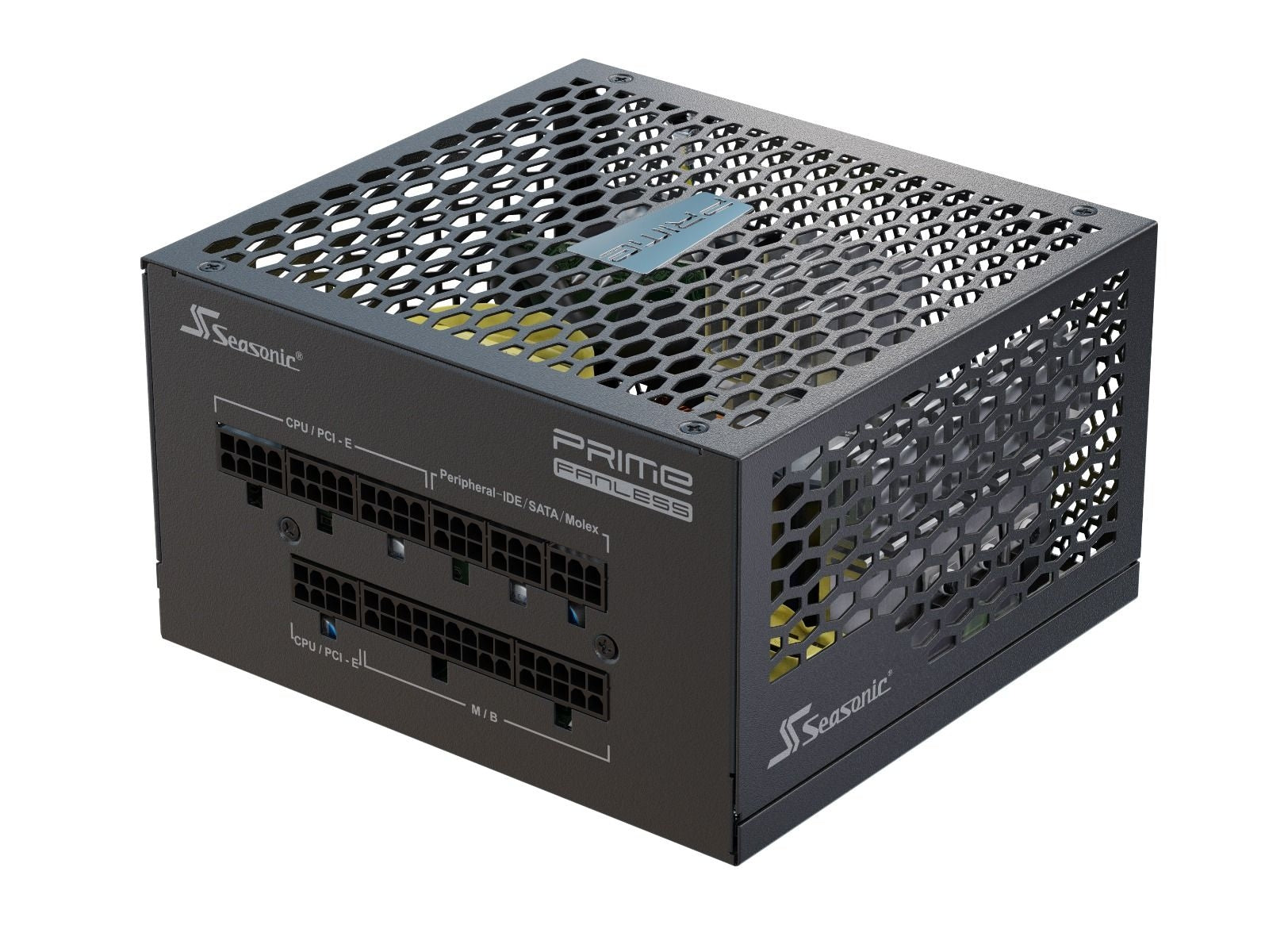

Seasonic Prime Fanless PX-500 500W Platinum PSU (SSR-500PL)

Seasonic Prime Fanless PX-500 500W Platinum PSU (SSR-500PL)

$441.95 AUD
$509.95 AUD $441.95 AUD
Sale Sold out
FEATURE SUMMARY
  • 80 PLUS® Platinum certified
  • Micro Tolerance Load Regulation (0.5%)
  • True Fanless Design
  • Multi-GPU setup
  • Gold plated connectors
  • 12 years warranty


    • Technical Specifications
    80PLUS® Platinum
    Cybenetics Efficiency Level TBA
    Cybenetics Noise Level TBA
    Form Factor Intel ATX 12V
    Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
    Fan Information Fan Size N/A
    Fan Control N/A
    Fan Bearing N/A
    Life Expectancy N/A

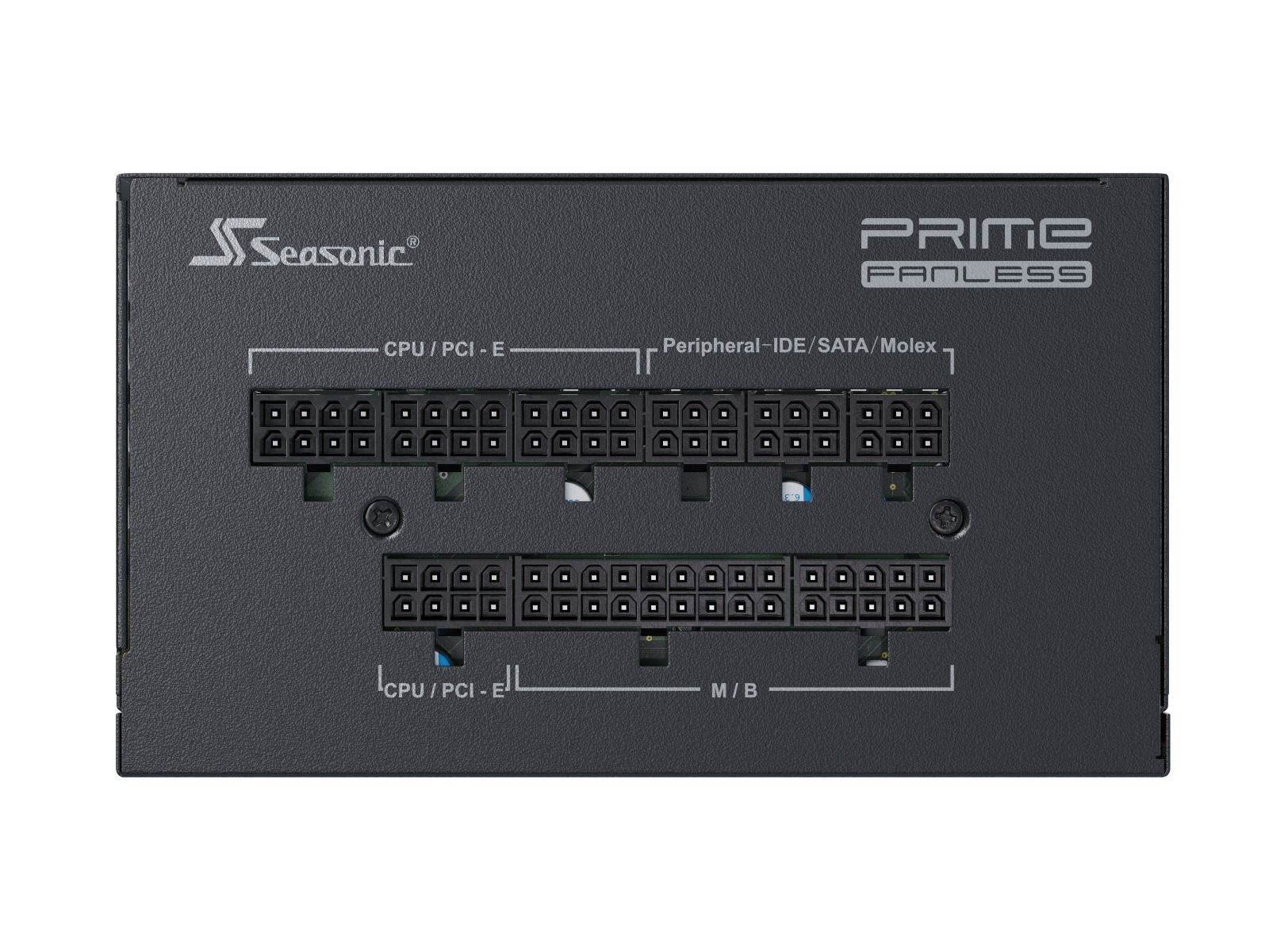

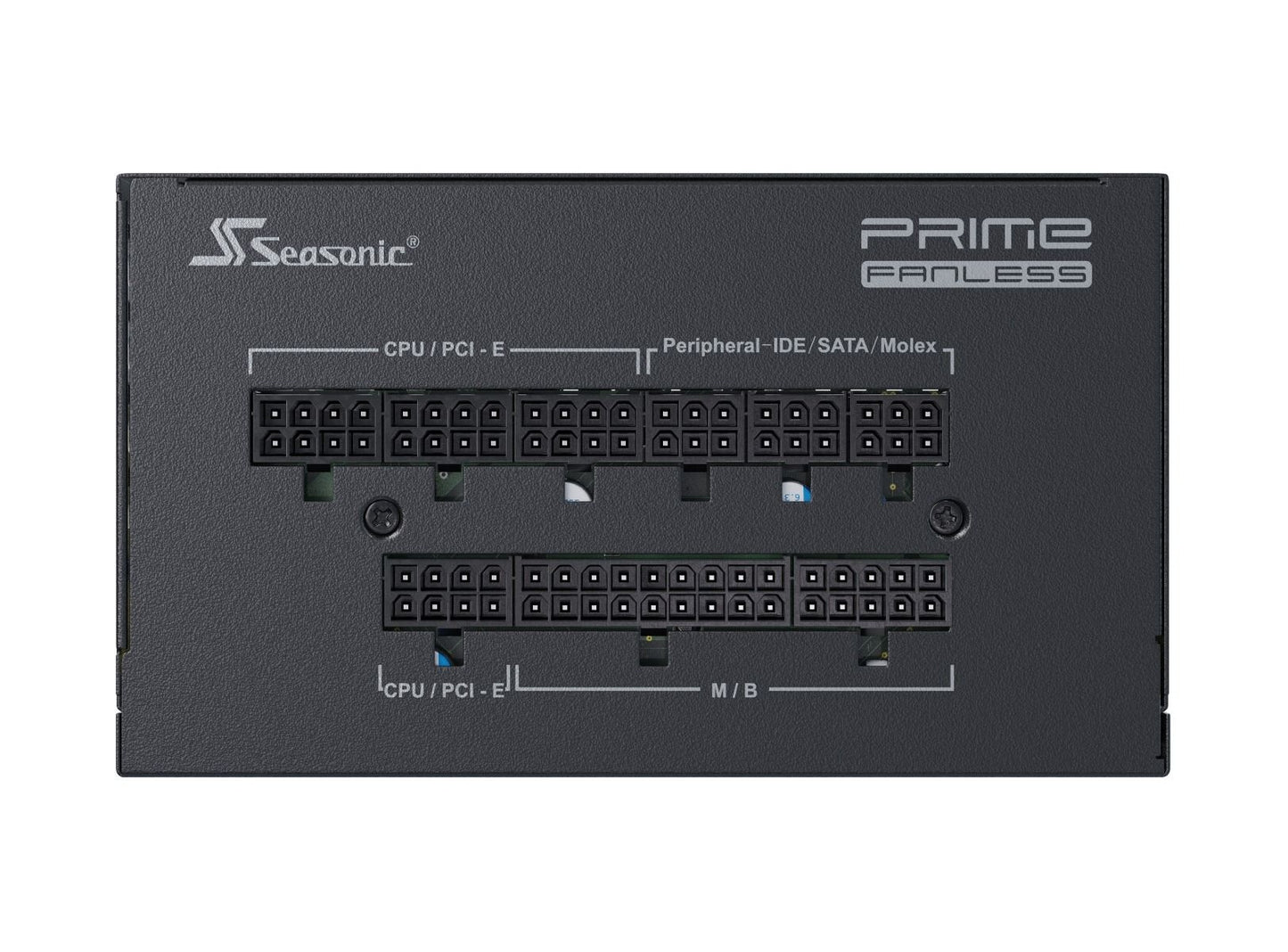

    Cable Information Modularity Fully Modular
    Cable type Webbed cables (MB, CPU, PCIe)
    Flat black cables
    Electrical Features Operating Temperature 0 - 50°C (derating from 100% to 80% from 40°C to 50°C)
    MTBF @ 25 °C, excl. fan 150,000 hours
    AC Input Full Range
    Protection OPP, OVP, UVP, OCP, OTP, SCP
    Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
    Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
    Warranty 12 Years

    V28-PSUSEAPX500
    Power Output
    AC Input
    Voltage: 100 V - 240 V
    Current: 7 - 4 A
    Frequency: 50 Hz - 60 Hz
    DC Output
    Rail
    +3.3 V
    +5 V
    +12 V
    -12 V
    +5 VSB
    Maximum Power
    20 A
    20 A
    41 A
    0.3 A
    3 A
    100 W
    492 W
    3.6 W
    15 W
    Total Continuous Power
    500 W
