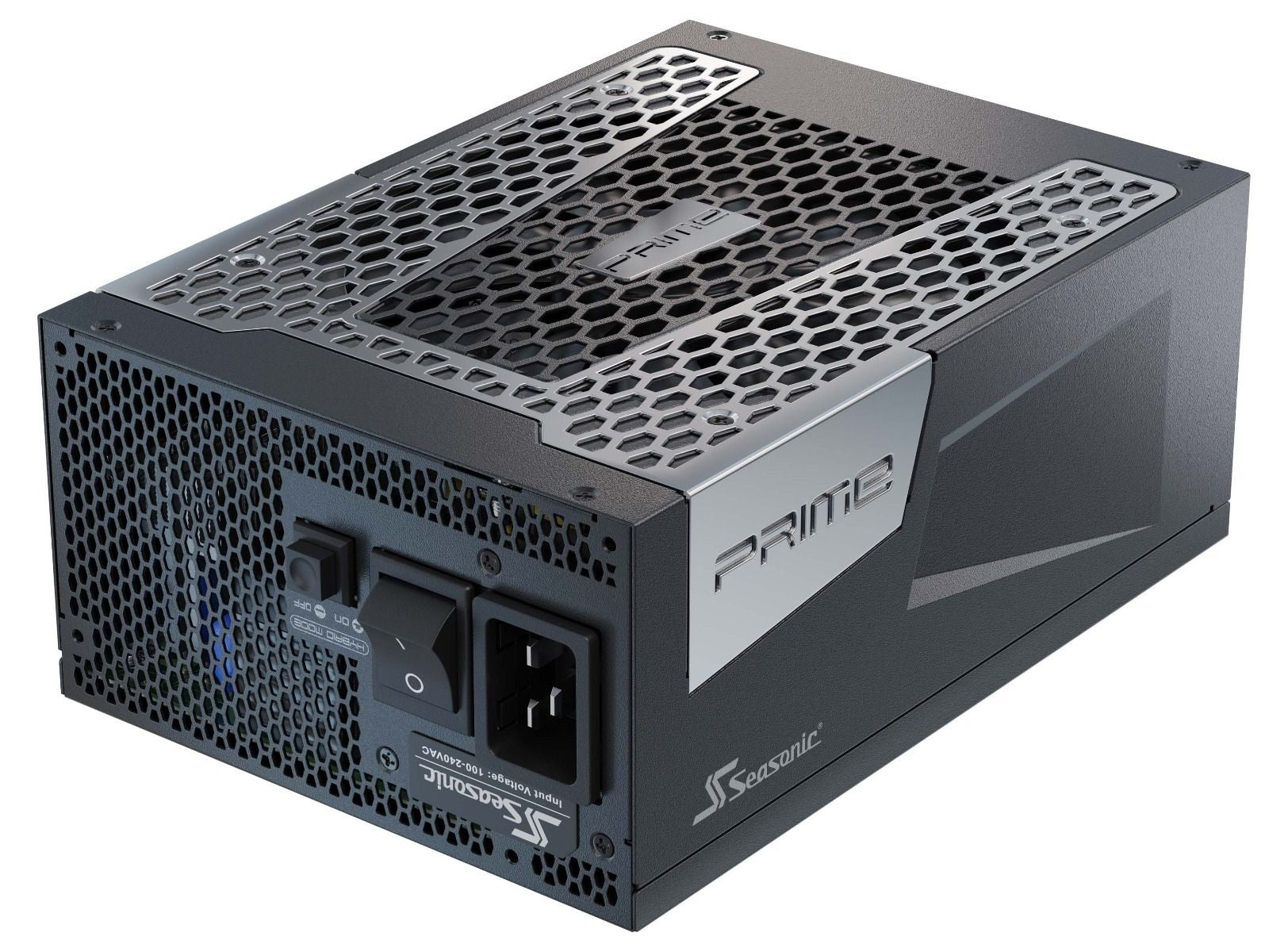

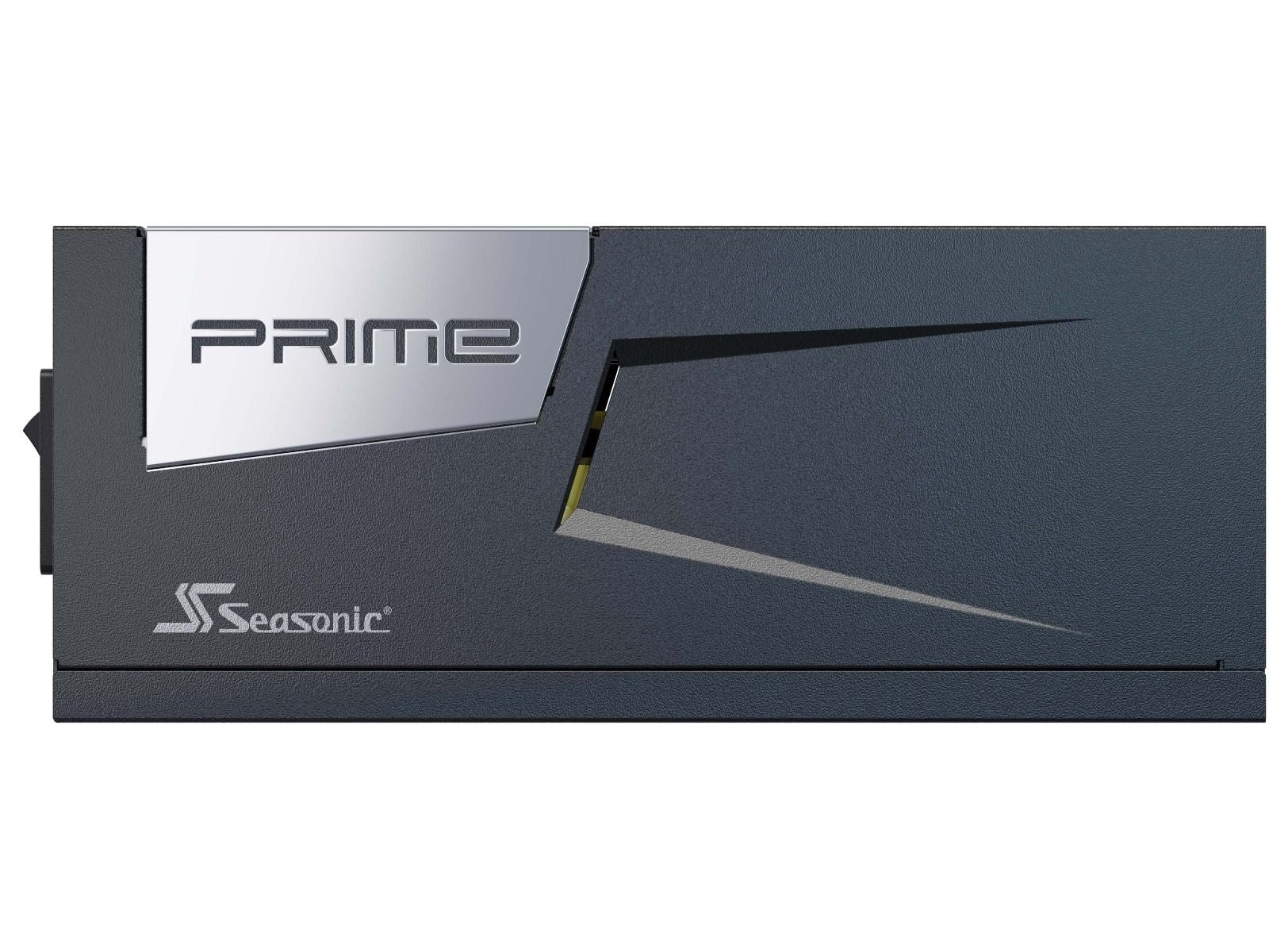

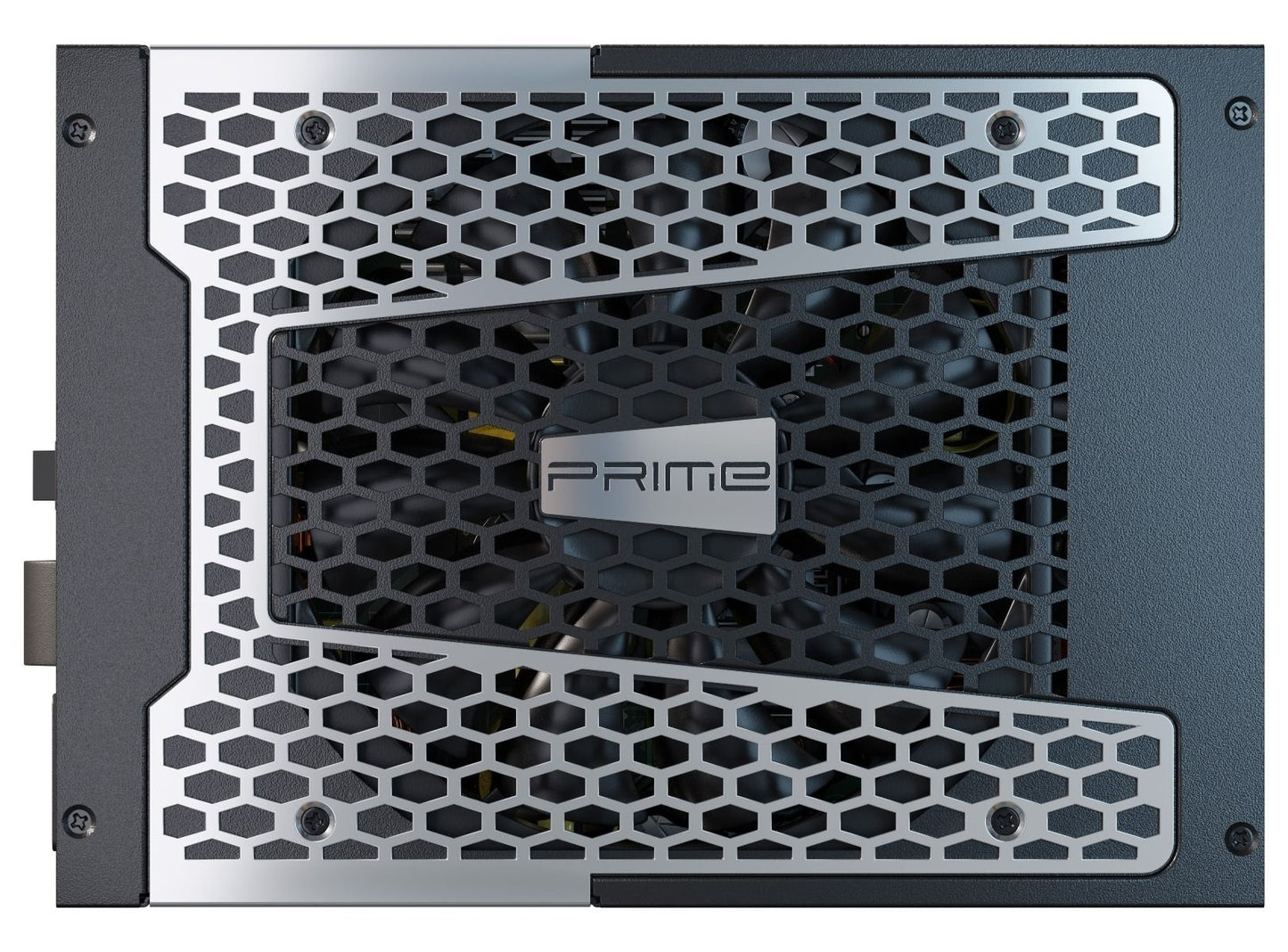

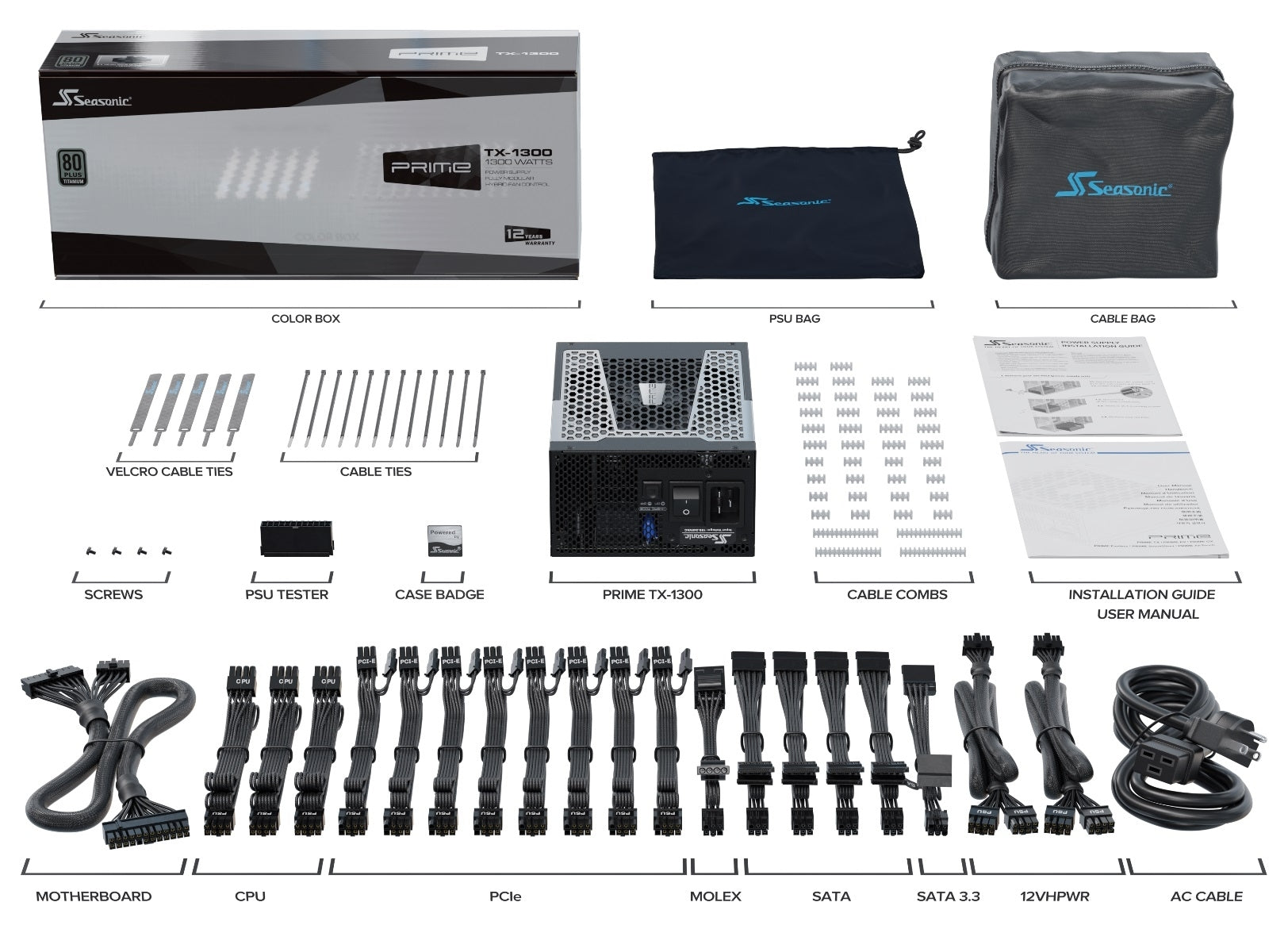

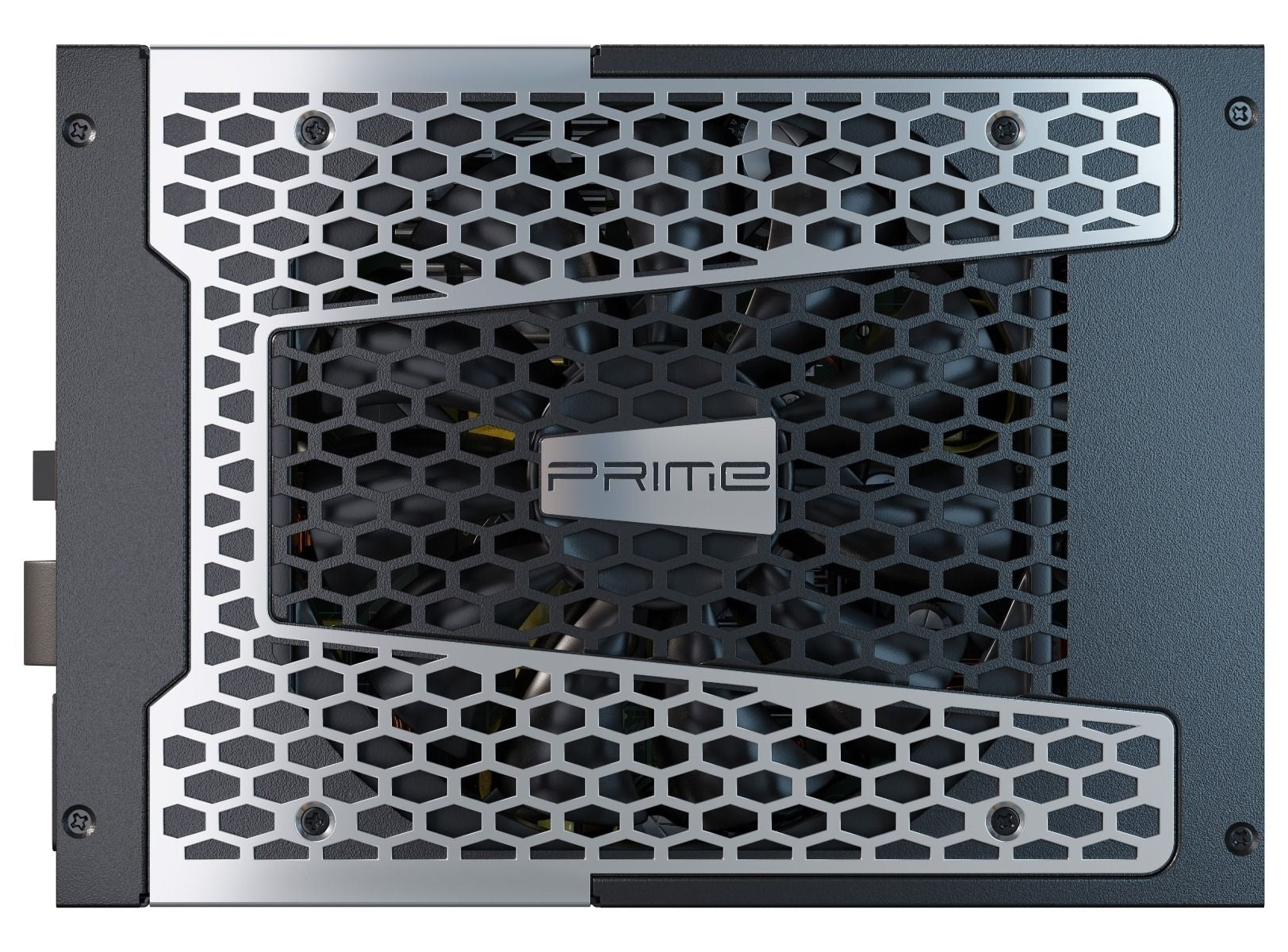

Seasonic PRIME TX-1300 1300W Titanium ATX 3.0 Fully Modular PSU

Seasonic PRIME TX-1300 1300W Titanium ATX 3.0 Fully Modular PSU

$1,031.95 AUD
$1,190.95 AUD $1,031.95 AUD
Sale Sold out
FEATURE SUMMARY
  • 80 PLUS® Titanium certified
  • ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)
  • Micro Tolerance Load Regulation (0.5 %)
  • Cable-free Connection Design
  • Premium Hybrid Fan Control - Fanless until 40 % load
  • Multi-GPU setup
  • Gold plated connectors
  • Note: 16A 3-pin plug adaptor might be needed.


    • Technical Specifications
    80PLUS® Titanium
    Cybenetics Efficiency Level TBA
    Cybenetics Noise Level TBA
    Form Factor Intel ATX 12 V 3.0
    Dimensions 210 mm (L) x 150 mm (W) x 86 mm (H)
    Fan Information Fan Size 135 mm
    Fan Control Premium Hybrid Fan Control
    Fan Bearing Fluid Dynamic Bearing
    Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
    Cable Information Modularity Fully Modular
    Cable type Flat black cables
    Electrical Features Operating Temperature 0 - 50 °C
    MTBF @ 25 °C, excl. fan 150,000 hours
    AC Input Full Range
    Protection OPP, OVP, UVP, OCP, OTP, SCP
    Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
    Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
    Warranty 12 Years

    V28-PSUSEA1300TRA3
    Power Output
    AC Input Voltage: 100 V - 240 V
    Current: 15 - 8 A
    Frequency: 50 Hz - 60 Hz
    DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
    Maximum Power 25 A 25 A 108.3 A 0.5 A 3 A
    125 W 1300 W 6 W 15 W
    Total Continuous Power 1300 W
